What is curved glass?
Curved glass is a tempered
glass is subject to heat in a furnace to reach its plasticity point and then
shaped into a specific curvature.

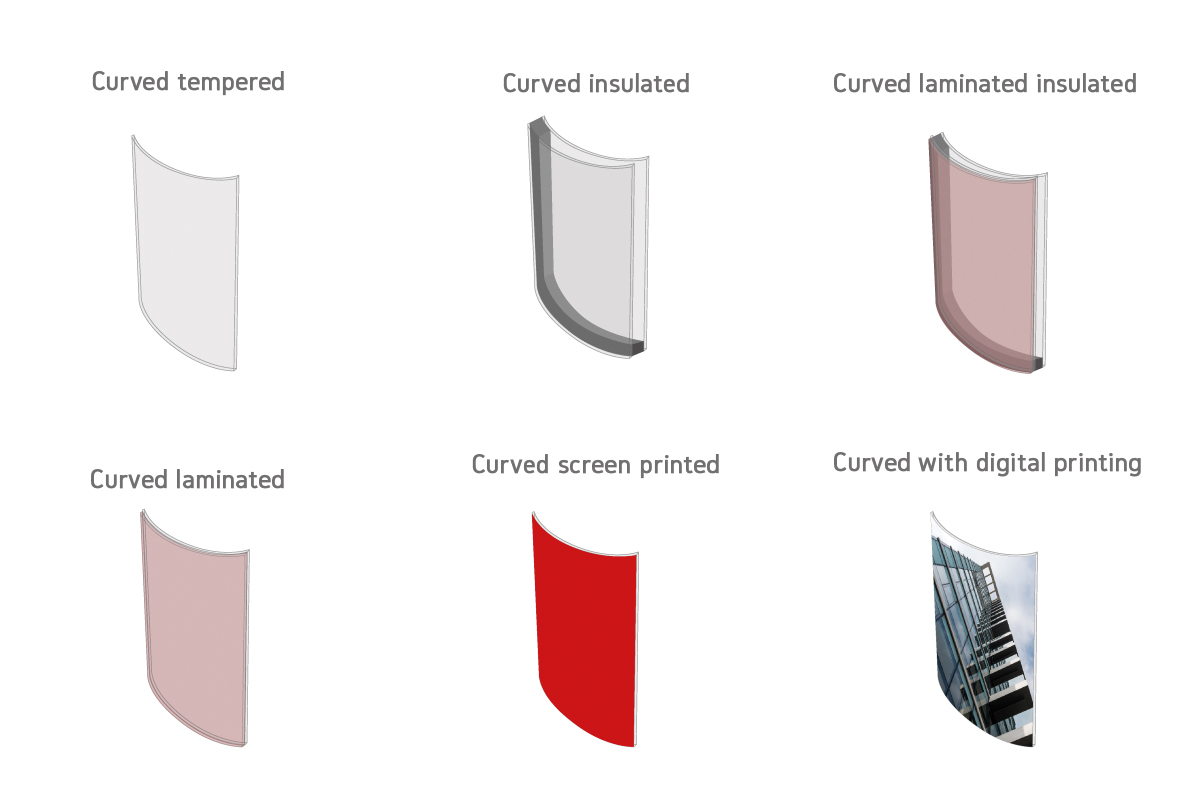

Millet Glass Industry is
able to manufacture jumbo curved tempered glass, curved laminated, curved
insulated, curved screen printed, and curved with digital printing.
How is it composed?
Capacity:
Certain
dimensional characteristics shall be considered to curve glass.
Available capacities are:

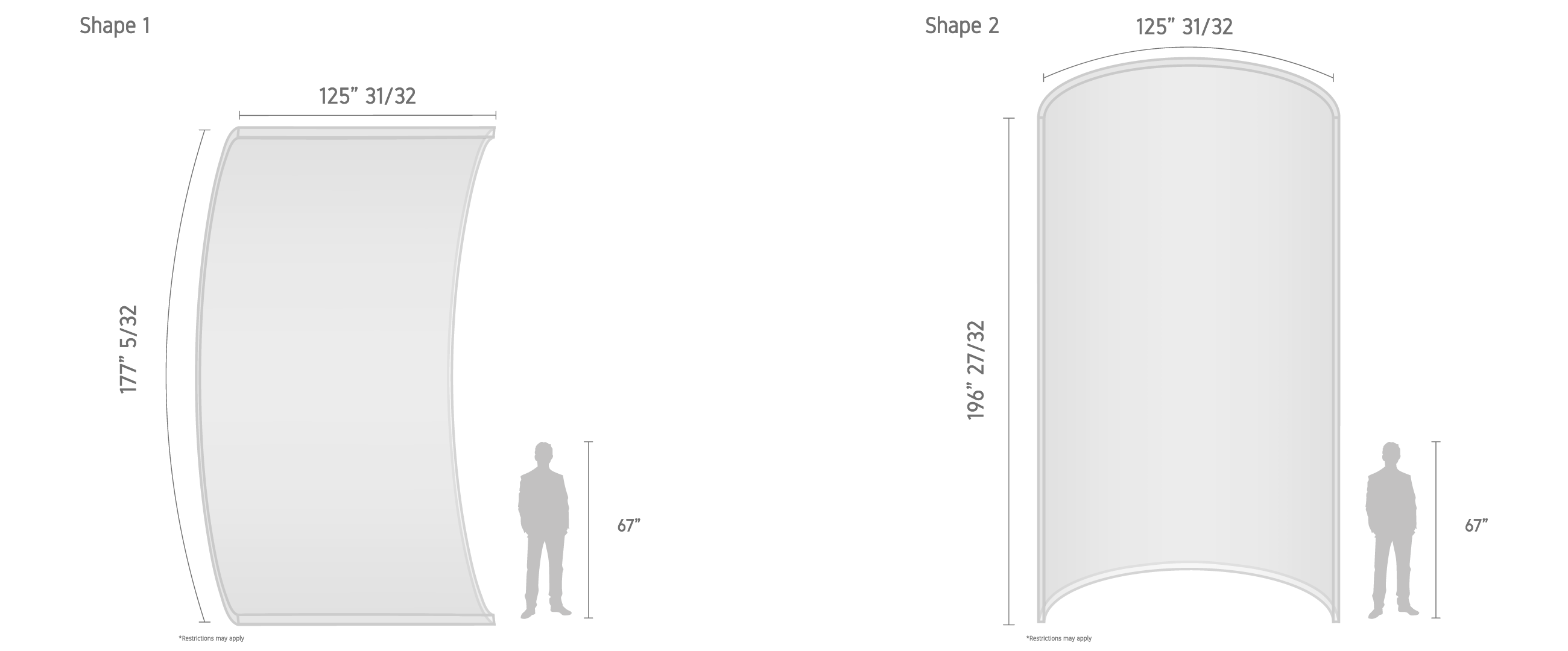

Shape 1 Minimum dimensions: 600 x 400 mm Maximum dimensions: 4,500 mm Maximum base: 3,200 m Minimum radius: -2,500 mm ( 6 - 10 mm glass) -3,000 mm (12 mm glass) -3,500 mm (15 - 19 mm glass) | shape 2 Minimum dimensions: 600 x 400 mm Maximum dimensions: 5,000 mm Maximum base: 3,200 m Minimum radius: -1,500 mm ( 6 - 8 mm glass) -2,000 mm (10 mm glass) -2,500 mm (12 - 15 mm glass) -3,500 mm (19 mm glass) |
Certifications:
SGCC, ANSI Z97.1-2015 Standard
Applications:
-Rolling doors
-Elevators
-rounded corners
-Facades
